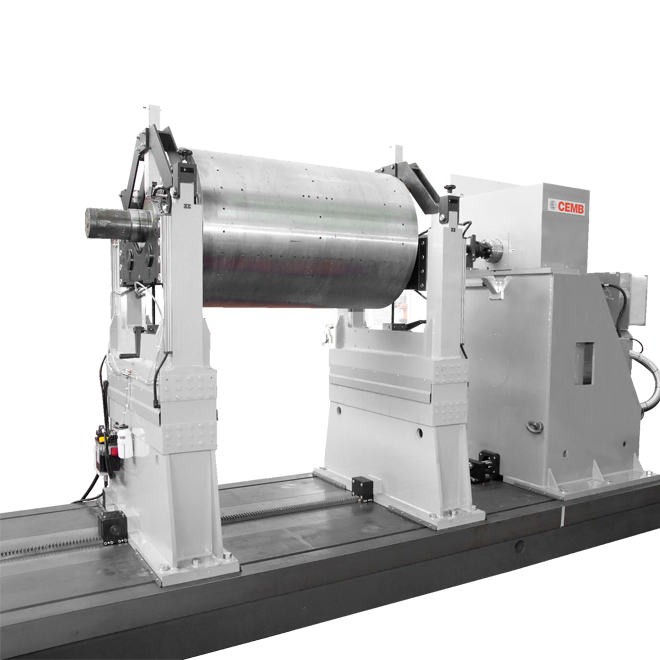

CEMB - Z40000-G-GV
The balancing of rotors with weight up to 45000 Kg.

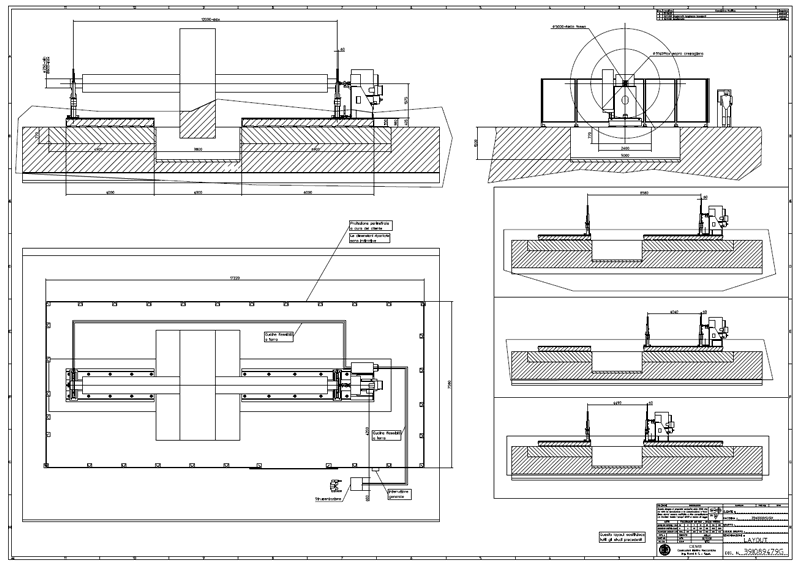

Machine with cardan drive and variable speed. (D.C.S. motor). Typical application for electric motors rotors. In case of very high rotation speeds and due to safety reason, the balancing machines may be placed inside a pit.
Technical Data
| Maximum weight for symmetric rotor | Kg 45000 |
| Maximum diameter of rotor | mm 3100 |
| Diameter of rotor journals | mm 40 ÷ 300 | mm 250 ÷ 600 |
| Maximum sensitivity | g.mm 25 |
| Balancing speed (measuring unit) | Rpm 70 ÷ 200.000 |
