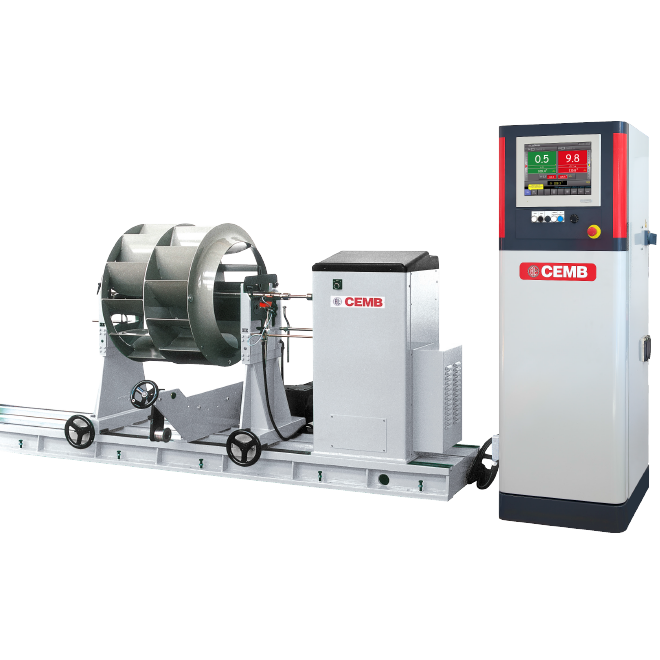

CEMB - Z750-G-TC
The balancing of rotors with weight up to 1100 Kg.
Balancing machine with dual drive: a cardan shaft drive and a belt drive, with manual tensioning. The instrument is the B9 type. It is also available the option with pneumatic tensioning device.
Technical Data
| Maximum weight for symmetric rotor | Kg 1100 |
| Maximum diameter of rotor | mm 1580 |
| Diameter of rotor journals | mm 10 ÷ 100 |
| Maximum sensitivity | g.mm 2 |
| Balancing speed (measuring unit) | Rpm 70 ÷ 200.000 |
