CEMB - Z8000-G-TC
The balancing of rotors with weight up to 10000 Kg.

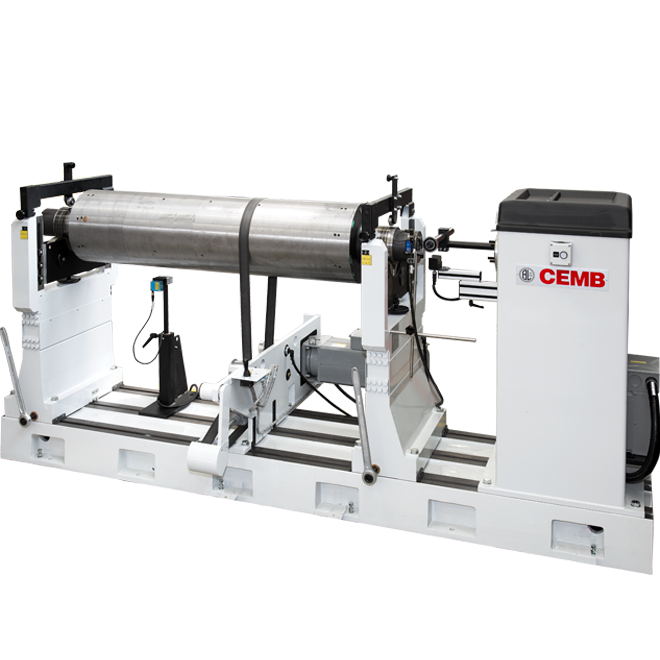

Balancing machine with end drive and belt drive with pneumatic tensioning. The picture shows the run-out measurement system allowing to measure the rotor flexion with rotor in rotation. The machine may be supplied combined with belt drive and cardan/belt drives.
Technical Data
| Maximum weight for symmetric rotor | Kg 10000 |
| Maximum diameter of rotor | mm 1900 |
| Diameter of rotor journals | mm 40 ÷ 200 |
| Maximum sensitivity | g.mm 10 |
| Balancing speed (measuring unit) | Rpm 70 ÷ 200.000 |
